Mitee-Bite Strap Clamps

Brand: Mitee-Bite CNC Fixture Clamps

CAD39.42 EA

Select

Cost: CAD39.42 EA -

Add to cart

Contact us for more information

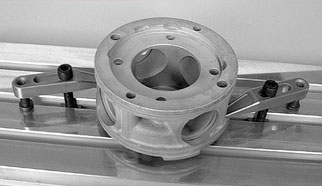

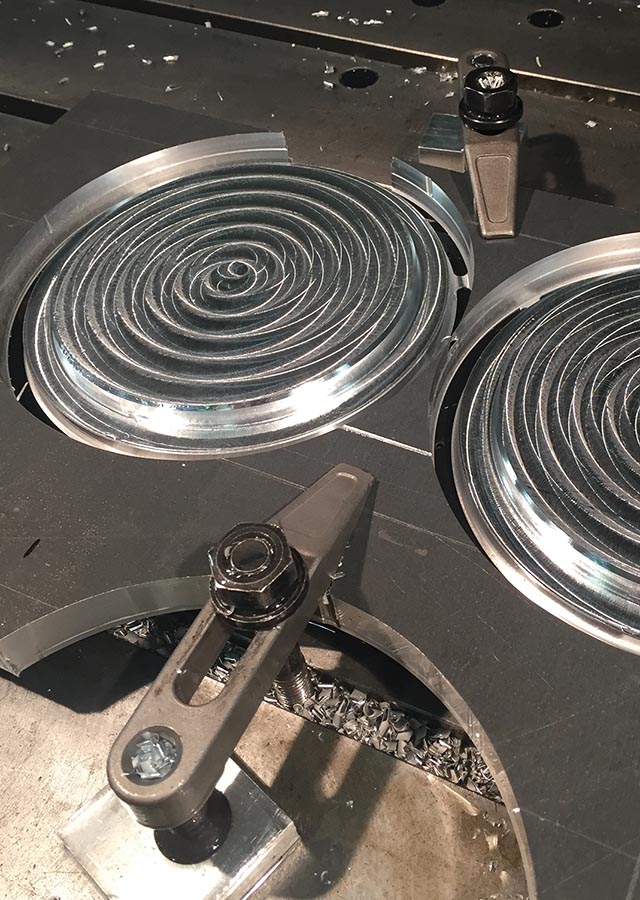

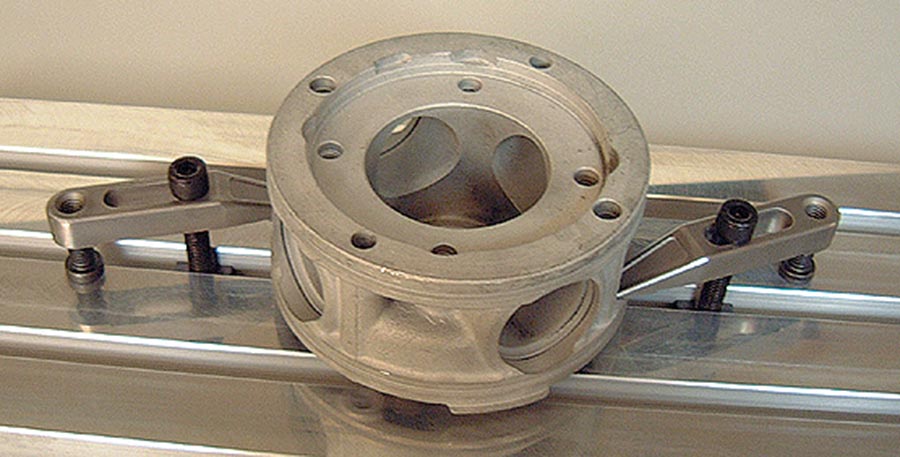

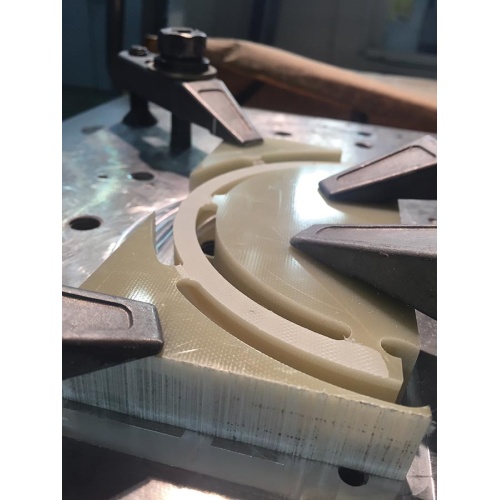

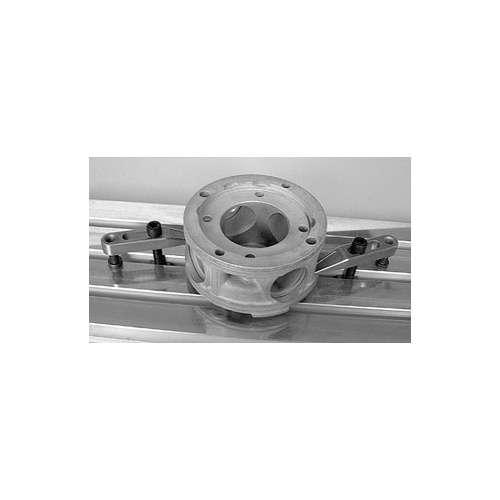

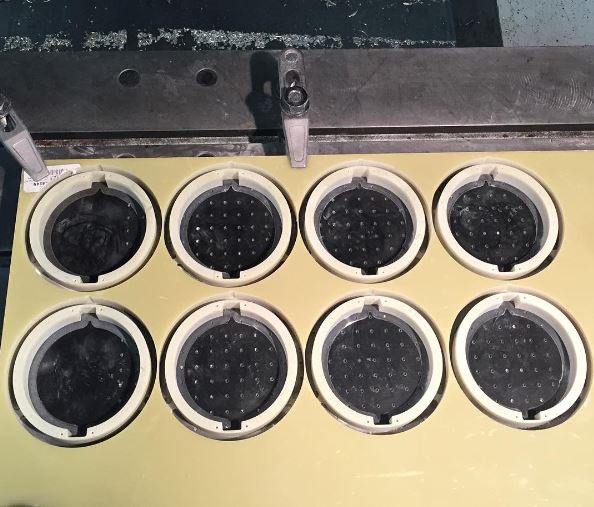

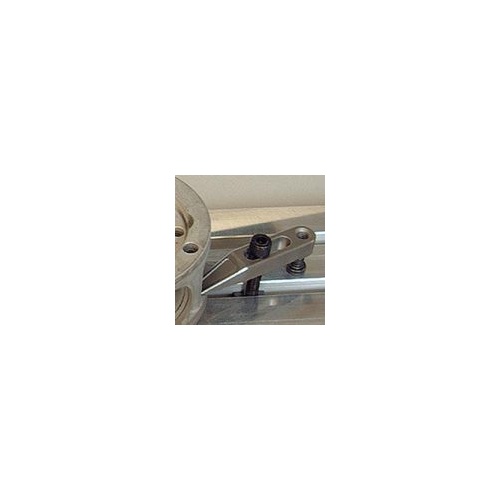

Strap Clamps

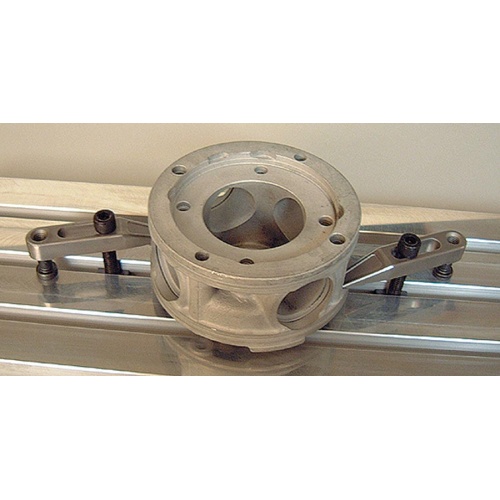

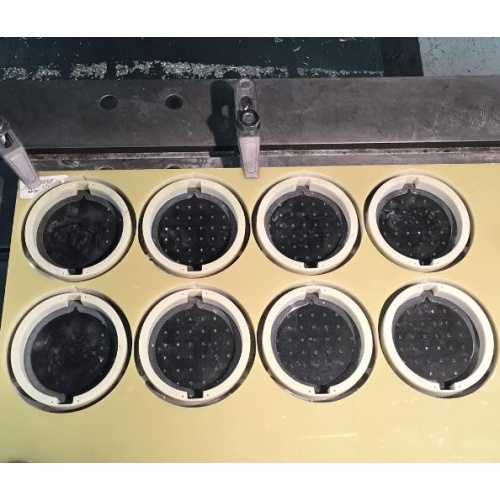

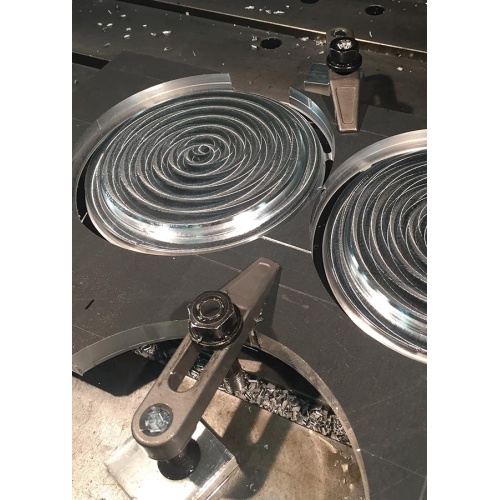

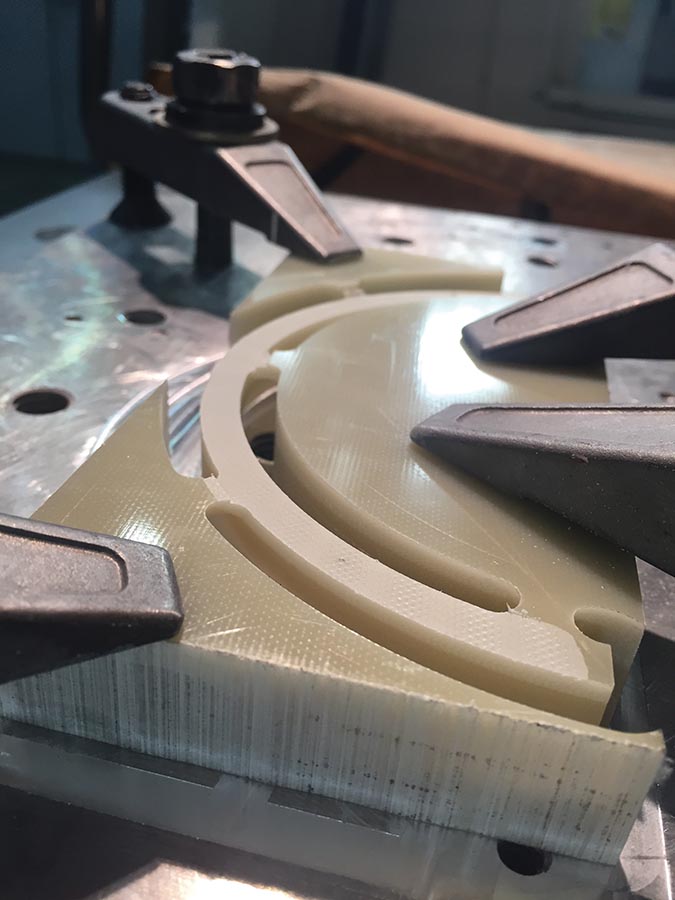

This low profile design promotes superior clamping in both normal and restricted areas with minimal tooling interference.

Heat treated 17-4 P.H. stainless steel
Guaranteed for life

	Part No.	A	B	C	D	E	F	HoldingForce (Lbs)
Inch	35100	3.63	0.43	0.89	0.400	0.86	3/8 Dia. PIN	3,200
	35200	5.00	0.75	1.00	0.530	1.36	1/2-13	6,000
	35300	6.00	0.86	1.20	0.650	1.50	5/8-11	8,600
	35400	7.00	1.06	1.40	0.780	1.50	3/4-10	15,700
								(N)
Metric	36100	92	11	22.6	10.4	22.0	9.5 Dia. Pin	14234
	36200	127	19	25.4	13.4	34.5	M12	26689
	36300	152	22	30.5	16.5	38.1	M16	38254
	36400	178	27	35.6	19.8	38.1	M20	69837
